REST API

kubefwd's REST API enables programmatic control over port forwarding. Build custom tooling, integrate with CI/CD pipelines, or create dashboards that dynamically manage which services are forwarded. Add and remove namespaces or individual services on the fly, query real-time metrics, stream events via SSE, and diagnose connection issues without restarting kubefwd.

Quick Start

# Idle mode - API enabled by default, add namespaces dynamically
sudo -E kubefwd

# Or forward a namespace with API enabled
sudo -E kubefwd svc -n default --api

# Test the API
curl http://kubefwd.internal/api/health

The API is available at http://kubefwd.internal/api.

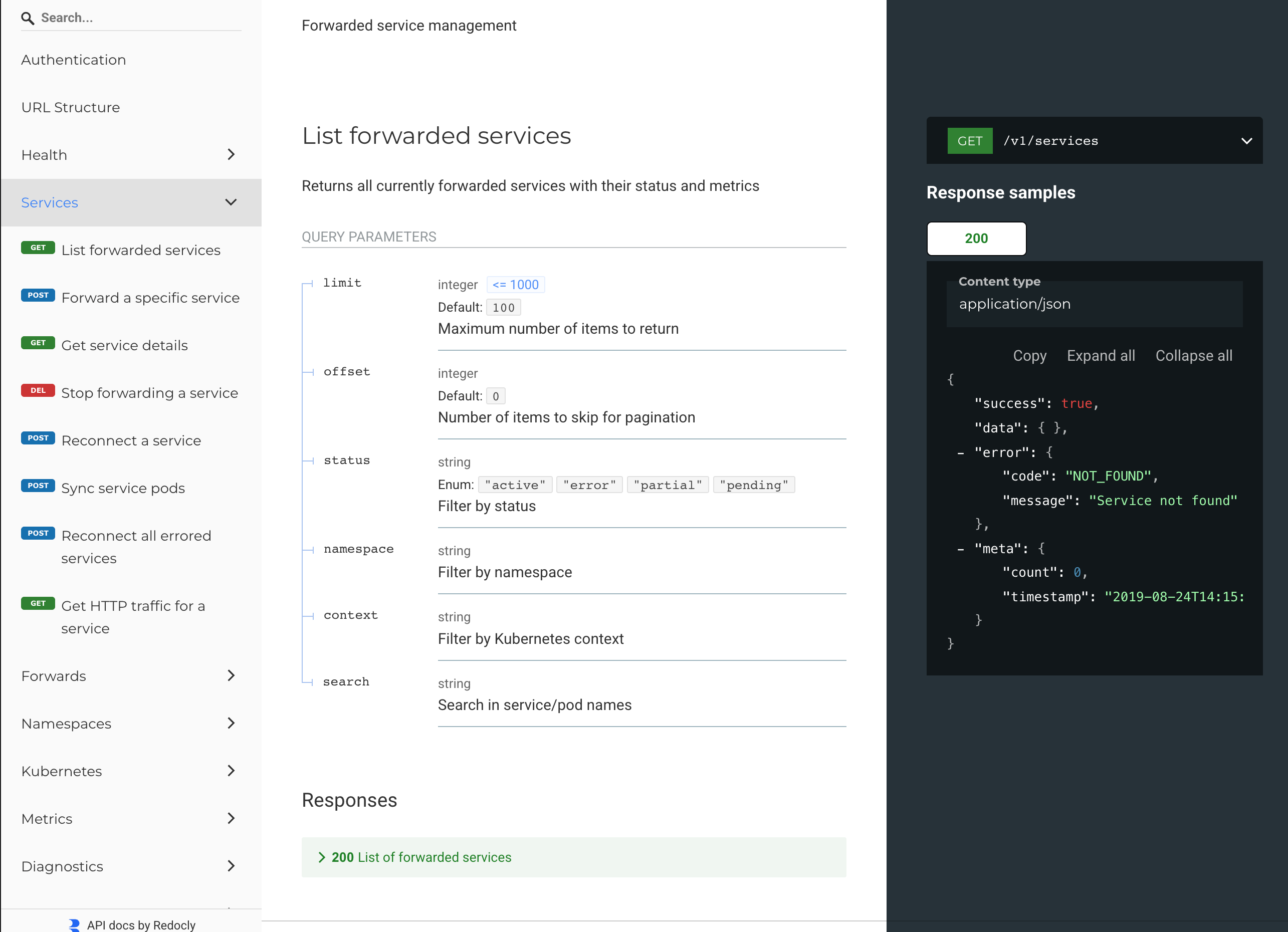

Interactive documentation is at http://kubefwd.internal/docs.

Overview

Property	Value
Base URL	http://kubefwd.internal/api
Authentication	None (loopback only)
Response Format	JSON
OpenAPI Spec	/openapi.yaml

All responses use this wrapper format:

{
  "success": true,
  "data": { ... },
  "error": null
}

Error responses:

{
  "success": false,
  "data": null,
  "error": {
    "code": "NOT_FOUND",
    "message": "Service not found"
  }
}

---

Health & Info

GET /api/health

Health check endpoint.

curl http://kubefwd.internal/api/health

{
  "status": "healthy",
  "timestamp": "2025-01-15T10:30:00Z"
}

GET /api/info

Server information and version.

curl http://kubefwd.internal/api/info

{
  "version": "1.26.0",
  "uptime": "2h15m30s",
  "startedAt": "2025-01-15T08:15:00Z"
}

---

Services

GET /api/v1/services

List all forwarded services.

Query Parameters:

Parameter	Type	Description
namespace	string	Filter by namespace
context	string	Filter by context
status	string	Filter by status (active, error)

# List all services
curl http://kubefwd.internal/api/v1/services

# Filter by namespace
curl http://kubefwd.internal/api/v1/services?namespace=default

GET /api/v1/services/:key

Get a specific service. Key format: service-name.namespace.context

curl http://kubefwd.internal/api/v1/services/api-gateway.default.minikube

POST /api/v1/services

Add a new service to forward.

curl -X POST http://kubefwd.internal/api/v1/services \
  -H "Content-Type: application/json" \
  -d '{
    "namespace": "default",
    "service_name": "my-service",
    "context": "minikube"
  }'

DELETE /api/v1/services/:key

Stop forwarding a service.

curl -X DELETE http://kubefwd.internal/api/v1/services/my-service.default.minikube

POST /api/v1/services/:key/reconnect

Reconnect a specific service.

curl -X POST http://kubefwd.internal/api/v1/services/api-gateway.default.minikube/reconnect

POST /api/v1/services/:key/sync

Sync service with Kubernetes (refresh pods).

curl -X POST http://kubefwd.internal/api/v1/services/api-gateway.default.minikube/sync

POST /api/v1/services/reconnect

Reconnect all services (or all errored services).

# Reconnect all errored services
curl -X POST http://kubefwd.internal/api/v1/services/reconnect

# Force reconnect all services
curl -X POST "http://kubefwd.internal/api/v1/services/reconnect?force=true"

---

Forwards

Individual port forwards (a service may have multiple forwards for different pods/ports).

GET /api/v1/forwards

List all active port forwards.

Query Parameters:

Parameter	Type	Description
namespace	string	Filter by namespace
service	string	Filter by service name
status	string	Filter by status

curl http://kubefwd.internal/api/v1/forwards

GET /api/v1/forwards/:key

Get details for a specific forward.

curl http://kubefwd.internal/api/v1/forwards/api-gateway-pod-abc.default.minikube

GET /api/v1/forwards/:key/http

Get HTTP traffic captured for a forward.

Query Parameters:

Parameter	Type	Description
count	integer	Number of entries (default: 50)

curl http://kubefwd.internal/api/v1/forwards/api-gateway.default.minikube/http?count=10

---

Namespaces

Manage namespace watchers dynamically.

GET /api/v1/namespaces

List active namespace watchers.

curl http://kubefwd.internal/api/v1/namespaces

GET /api/v1/namespaces/:key

Get details for a namespace watcher. Key format: namespace.context

curl http://kubefwd.internal/api/v1/namespaces/default.minikube

POST /api/v1/namespaces

Add a namespace watcher (start forwarding all services in namespace).

curl -X POST http://kubefwd.internal/api/v1/namespaces \
  -H "Content-Type: application/json" \
  -d '{
    "namespace": "staging",
    "context": "minikube"
  }'

DELETE /api/v1/namespaces/:key

Remove a namespace watcher (stop forwarding all services in namespace).

curl -X DELETE http://kubefwd.internal/api/v1/namespaces/staging.minikube

---

Kubernetes Discovery

Query the Kubernetes cluster for available resources.

GET /api/v1/kubernetes/contexts

List available kubeconfig contexts.

curl http://kubefwd.internal/api/v1/kubernetes/contexts

GET /api/v1/kubernetes/namespaces

List namespaces in a context.

Query Parameters:

Parameter	Type	Description
context	string	Kubernetes context (uses current if omitted)

curl http://kubefwd.internal/api/v1/kubernetes/namespaces?context=minikube

GET /api/v1/kubernetes/services

List services in a namespace.

Query Parameters:

Parameter	Type	Description
namespace	string	Namespace (required)
context	string	Kubernetes context

curl "http://kubefwd.internal/api/v1/kubernetes/services?namespace=default&context=minikube"

GET /api/v1/kubernetes/services/:namespace/:name

Get details for a specific Kubernetes service.

curl http://kubefwd.internal/api/v1/kubernetes/services/default/api-gateway

GET /api/v1/kubernetes/pods/:namespace

List pods in a namespace with status, ready state, restarts, and age.

Query Parameters:

Parameter	Type	Description
context	string	Kubernetes context (uses current if omitted)
labelSelector	string	Filter pods by labels (e.g., "app=nginx")
serviceName	string	Filter to pods backing this service

# List all pods in namespace
curl http://kubefwd.internal/api/v1/kubernetes/pods/default

# Filter by label
curl "http://kubefwd.internal/api/v1/kubernetes/pods/default?labelSelector=app=nginx"

# Filter by service
curl "http://kubefwd.internal/api/v1/kubernetes/pods/default?serviceName=api-gateway"

GET /api/v1/kubernetes/pods/:namespace/:podName

Get detailed pod information including containers, status, conditions, and resources.

curl http://kubefwd.internal/api/v1/kubernetes/pods/default/api-gateway-7d4f5b6c8-abc12

GET /api/v1/kubernetes/pods/:namespace/:podName/logs

Get logs from a pod's container.

Query Parameters:

Parameter	Type	Description
context	string	Kubernetes context (uses current if omitted)
container	string	Container name (defaults to first container)
tailLines	integer	Lines from end (default: 100, max: 1000)
sinceTime	string	RFC3339 timestamp to start from
previous	boolean	Get logs from previous container instance
timestamps	boolean	Include timestamps in output

# Get last 100 lines
curl http://kubefwd.internal/api/v1/kubernetes/pods/default/api-gateway-7d4f5b6c8-abc12/logs

# Get last 50 lines with timestamps
curl "http://kubefwd.internal/api/v1/kubernetes/pods/default/api-gateway-7d4f5b6c8-abc12/logs?tailLines=50&timestamps=true"

# Get logs from specific container
curl "http://kubefwd.internal/api/v1/kubernetes/pods/default/api-gateway-7d4f5b6c8-abc12/logs?container=sidecar"

GET /api/v1/kubernetes/events/:namespace

Get Kubernetes events for debugging. Shows scheduling, pulling, starting, and killing events.

Query Parameters:

Parameter	Type	Description
context	string	Kubernetes context (uses current if omitted)
resourceKind	string	Filter by kind (Pod, Service, Deployment)
resourceName	string	Filter by resource name
limit	integer	Max events to return (default: 50)

# Get all events in namespace
curl http://kubefwd.internal/api/v1/kubernetes/events/default

# Filter to pod events
curl "http://kubefwd.internal/api/v1/kubernetes/events/default?resourceKind=Pod"

# Get events for specific pod
curl "http://kubefwd.internal/api/v1/kubernetes/events/default?resourceKind=Pod&resourceName=api-gateway-7d4f5b6c8-abc12"

GET /api/v1/kubernetes/endpoints/:namespace/:serviceName

Get endpoints for a service. Shows which pods are backing the service and their ready state.

curl http://kubefwd.internal/api/v1/kubernetes/endpoints/default/api-gateway

---

Metrics

Traffic and performance metrics.

GET /api/v1/metrics

Summary metrics for all forwards.

curl http://kubefwd.internal/api/v1/metrics

{
  "totalServices": 15,
  "activeForwards": 23,
  "totalBytesIn": 1048576,
  "totalBytesOut": 524288,
  "uptime": "2h15m"
}

GET /api/v1/metrics/services

Metrics grouped by service.

curl http://kubefwd.internal/api/v1/metrics/services

GET /api/v1/metrics/services/:key

Detailed metrics for a specific service.

curl http://kubefwd.internal/api/v1/metrics/services/api-gateway.default.minikube

GET /api/v1/metrics/services/:key/history

Historical metrics for a service (time series data).

Query Parameters:

Parameter	Type	Description
duration	string	Time window (e.g., "1h", "30m")
interval	string	Bucket interval (e.g., "1m", "5m")

curl "http://kubefwd.internal/api/v1/metrics/services/api-gateway.default.minikube/history?duration=1h"

---

Diagnostics

Error analysis and troubleshooting.

GET /api/v1/diagnostics

Diagnostics summary.

curl http://kubefwd.internal/api/v1/diagnostics

GET /api/v1/diagnostics/errors

List current errors.

curl http://kubefwd.internal/api/v1/diagnostics/errors

GET /api/v1/diagnostics/services/:key

Diagnostics for a specific service.

curl http://kubefwd.internal/api/v1/diagnostics/services/api-gateway.default.minikube

GET /api/v1/diagnostics/forwards/:key

Diagnostics for a specific forward.

curl http://kubefwd.internal/api/v1/diagnostics/forwards/api-gateway.default.minikube

GET /api/v1/diagnostics/network

Network interface diagnostics.

curl http://kubefwd.internal/api/v1/diagnostics/network

---

Analysis

AI-friendly status and analysis endpoints.

GET /api/v1/status

Quick status overview optimized for AI tools.

curl http://kubefwd.internal/api/v1/status

{
  "status": "healthy",
  "message": "All services forwarding normally",
  "totalServices": 15,
  "activeServices": 15,
  "errorCount": 0
}

GET /api/v1/analyze

Detailed analysis with recommendations.

curl http://kubefwd.internal/api/v1/analyze

---

History

Event and error history.

GET /api/v1/history/events

Recent events.

Query Parameters:

Parameter	Type	Description
count	integer	Number of events (default: 50)

curl http://kubefwd.internal/api/v1/history/events?count=20

GET /api/v1/history/errors

Error history.

curl http://kubefwd.internal/api/v1/history/errors?count=20

GET /api/v1/history/reconnections

All reconnection events.

curl http://kubefwd.internal/api/v1/history/reconnections

GET /api/v1/services/:key/history/reconnections

Reconnection history for a specific service.

curl http://kubefwd.internal/api/v1/services/api-gateway.default.minikube/history/reconnections

GET /api/v1/history/stats

Aggregated history statistics.

curl http://kubefwd.internal/api/v1/history/stats

---

Logs

Application logs.

GET /api/v1/logs

Recent log entries.

Query Parameters:

Parameter	Type	Description
count	integer	Number of entries (default: 100)
level	string	Filter by level (debug, info, warn, error)
service	string	Filter by service

curl "http://kubefwd.internal/api/v1/logs?count=50&level=error"

GET /api/v1/logs/stream

Server-Sent Events (SSE) stream of logs.

curl http://kubefwd.internal/api/v1/logs/stream

GET /api/v1/logs/system

System-level logs.

curl http://kubefwd.internal/api/v1/logs/system

DELETE /api/v1/logs/system

Clear system logs.

curl -X DELETE http://kubefwd.internal/api/v1/logs/system

---

Events (SSE)

GET /api/v1/events

Server-Sent Events stream for real-time updates.

curl http://kubefwd.internal/api/v1/events

Event types:

• service.added - New service started forwarding
• service.removed - Service stopped forwarding
• service.error - Service encountered an error
• forward.connected - Port forward established
• forward.disconnected - Port forward lost
• pod.added - Pod added to service
• pod.removed - Pod removed from service

Example event:

event: service.added
data: {"key":"api-gateway.default.minikube","namespace":"default","service":"api-gateway"}

---

HTTP Traffic

HTTP request/response capture for debugging.

GET /api/v1/services/:key/http

HTTP traffic for a service.

Query Parameters:

Parameter	Type	Description
count	integer	Number of entries (default: 50)

curl http://kubefwd.internal/api/v1/services/api-gateway.default.minikube/http?count=10

---

Error Codes

Code	Description
NOT_FOUND	Resource not found
BAD_REQUEST	Invalid request parameters
INTERNAL_ERROR	Server error
ALREADY_EXISTS	Resource already exists
CONFLICT	Operation conflicts with current state

---

See Also

• Getting Started - Installation and basic usage
• MCP Integration - AI assistant integration
• Configuration - CLI flags reference
